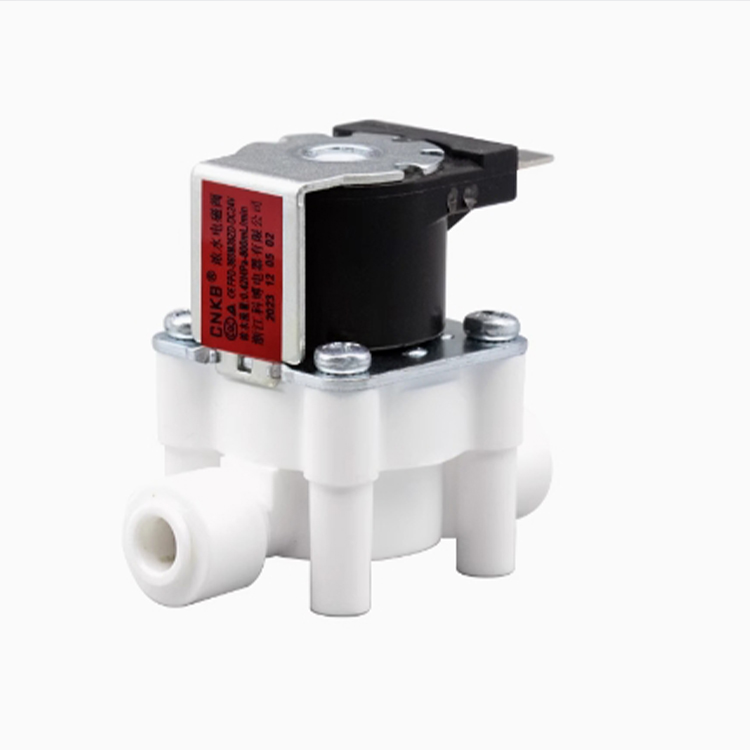

Water purifier solenoid valve

The water purifier solenoid valve is a device that uses the electromagnetic principle to control the switch of fluid (mainly water). It is mainly composed of electromagnet, valve body and valve core. The movement of the valve core is controlled by the attraction and release of the electromagnet, thereby realizing the opening and closing of the water flow.

Send Inquiry

Product Description

The working principle of the water purifier solenoid valve is based on the principle of electromagnetic induction. When the electromagnet is acted upon by electric current, it will generate magnetic force, which will push the valve core to move, thereby changing the channel state of the valve body and achieving control of the water flow. Specifically, when the electromagnet is energized, the magnetic force attracts the valve core to move, causing the valve body channel to open and allowing water to flow through; when the electromagnet is de-energized, the magnetic force disappears, the valve core is reset under the action of the spring, the valve body channel is closed, and the water flow is cut off.

Inlet valve: installed at the water inlet of the water purifier, the purpose is to control the opening and closing of the water circuit of the water purifier, power on and off.
Wastewater valve: installed at the wastewater of the water purifier, the purpose is to control the wastewater flow of the water purifier, the wastewater valve is normally open
High-pressure switch: installed on the water circuit between the RO membrane pure water port and the pressure barrel, the function is to control the opening and closing of the circuit of the water purifier
Low-pressure switch: installed on the water circuit between the water inlet and the filter element, the function is to prevent the water pump from working without water and damaging the water pump
18-second solenoid valve: installed on the wastewater port of the RO membrane, the purpose is to adjust the wastewater discharge ratio; control the backwash function

	Water inlet valve		Wastewater valve
Product model	FPD-360L30ZD	Product model	FPD-360M30ZD
Applicable voltage	DC24V	Applicable voltage	DC24V
Applicable water pressure	0.02-1.2mpa	Drainage flow rate	300ml/min
Opening and closing life	≥100,000 times	Opening and closing life	≥100,000 times
Applicable temperature	0~45°C	Adaptable temperature	0~45°C
Socket size	2 branch pipes 6.5mm	Socket size	2 branch pipes 6.5mm
Fault	Waste water does not stop	Fault	No wastewater
Troubleshooting	Power off does not turn off the water, and close the pressure tank. If waste water does not stop, it is a fault	Troubleshooting	Directly remove the wastewater valve

	High-voltage switch		Low pressure switch
Product model	HPS-150	Product model	HPS-63
Applicable voltage	0~220V	Closed value	0.05±0.05Mpa
Applicable water pressure	0.02-1.2mpa	Disconnected value	0.03±0.02Mpa
Opening and closing life	≥100,000 times	Opening and closing life	≥100,000 times
Applicable temperature	0~45°C	Adaptable temperature	0~45°C
Socket size	2 minutes 6.5mm	Socket size	2 minutes 6.5mm
Fault	No shutdown when water is full	Fault	No shutdown when water is full
Troubleshooting	Close the pressure tank. If it does not stop, it means the high-voltage switch is faulty	Troubleshooting	Close the pressure tank. If it does not stop, it means the high pressure switch is faulty

	18-second solenoid valve
Product model	FPD-90J30
Applicable voltage	DC24V
Concentrated water flow rate	0:0ml/min
Flushing time	18 seconds
Fixed spacing	0~45°C
Socket size	2-pipe 6.5mm
Fault	No waste water coming out
Troubleshooting	Pull out the waste water valve directly. If water comes out, it means the waste water valve is faulty
