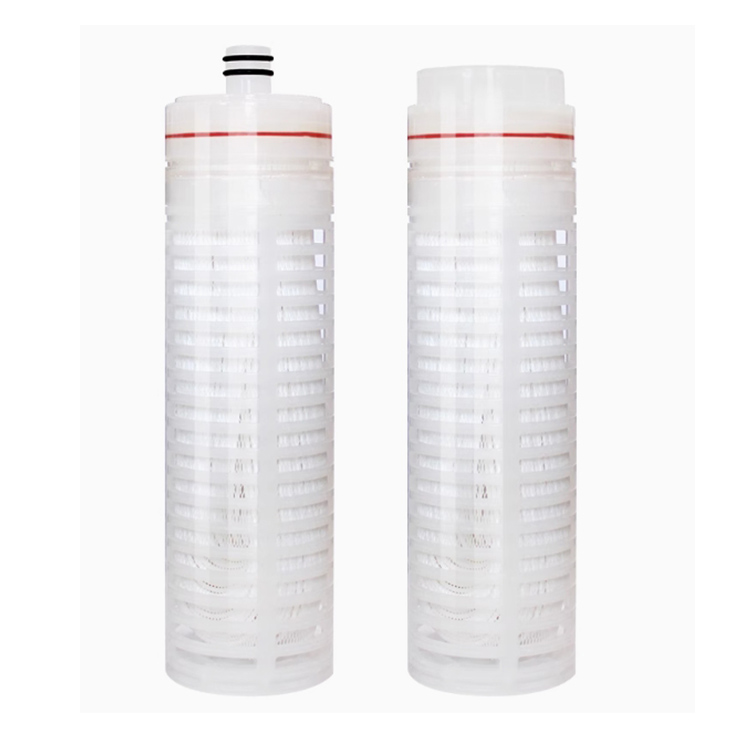

Ultrafiltration membrane filter element

Ultrafiltration membrane filter element is a filter element that adopts ultrafiltration technology and uses ultrafiltration membrane as the filtration medium. It can intercept suspended matter, colloids, proteins and other macromolecular substances in water, and only allow water molecules, inorganic salts and small molecular organic matter to pass through. It is mainly used for water purification.

Send Inquiry

Product Description

Purification principle of ultrafiltration membrane filter element

The working principle of the ultrafiltration membrane filter element is like a super fine sieve. There are many super small holes on its wall, and the size of each hole is no more than 0.01 micron. When water flows through under the action of pressure, those dirt larger than 0.01 micron are blocked outside and cannot pass through. Clean water, on the other hand, passes through these small holes smoothly and flows out of the filter element, becoming clean water that we can use.

The special thing about this ultrafiltration membrane filter is that it can be disassembled and washed before being reused. Inside is a structure like many hollow thin lines. This design makes it particularly powerful in filtering water. It can catch all the bacteria and viruses in the water like a superhero, and even parasites and impurities as small as 0.01 microns cannot escape its eyes and are all blocked out. E. coli and other things that are bad for the human body are also caught in one fell swoop. However, trace elements and minerals that are good for the human body will not be blocked, allowing them to continue to remain in the water. The filtered water is clean and healthy, with many minerals, especially suitable for home kitchen use, and you can be assured when cooking and boiling water.

Universal ultrafiltration membrane filter element parameters：

Product name	Hollow fiber ultrafiltration membrane
Product model	10-inch flat port	10-inch socket
Specifications and dimensions	70mm*250mm	70mm*260mm
Filter accuracy	0.01 micron
Applicable pressure	0.1~0.3Mpa
Applicable temperature	4-45°C
Replacement cycle	180 days is recommended
Product function	Effectively remove various growths, sediment colloids and rust in tap water, and retain trace elements and minerals in the water

Characteristics of ultrafiltration membrane filter element

1. Dense high-quality membrane wire
High number of membrane wires, stronger filtering ability, good membrane wire toughness, long service life.
2. Food-grade shell
Thickened food-grade shell material is safe and durable
3.Hollow fiber membrane wire
Using food-grade material ultra-membrane wire to filter particles above 0.01 microns, colloids, bacteria, impurities
4. Various styles available
Removable and washable ultrafiltration membrane, effectively filter out bacteria, viruses and other retained minerals, water can be directly drunk
